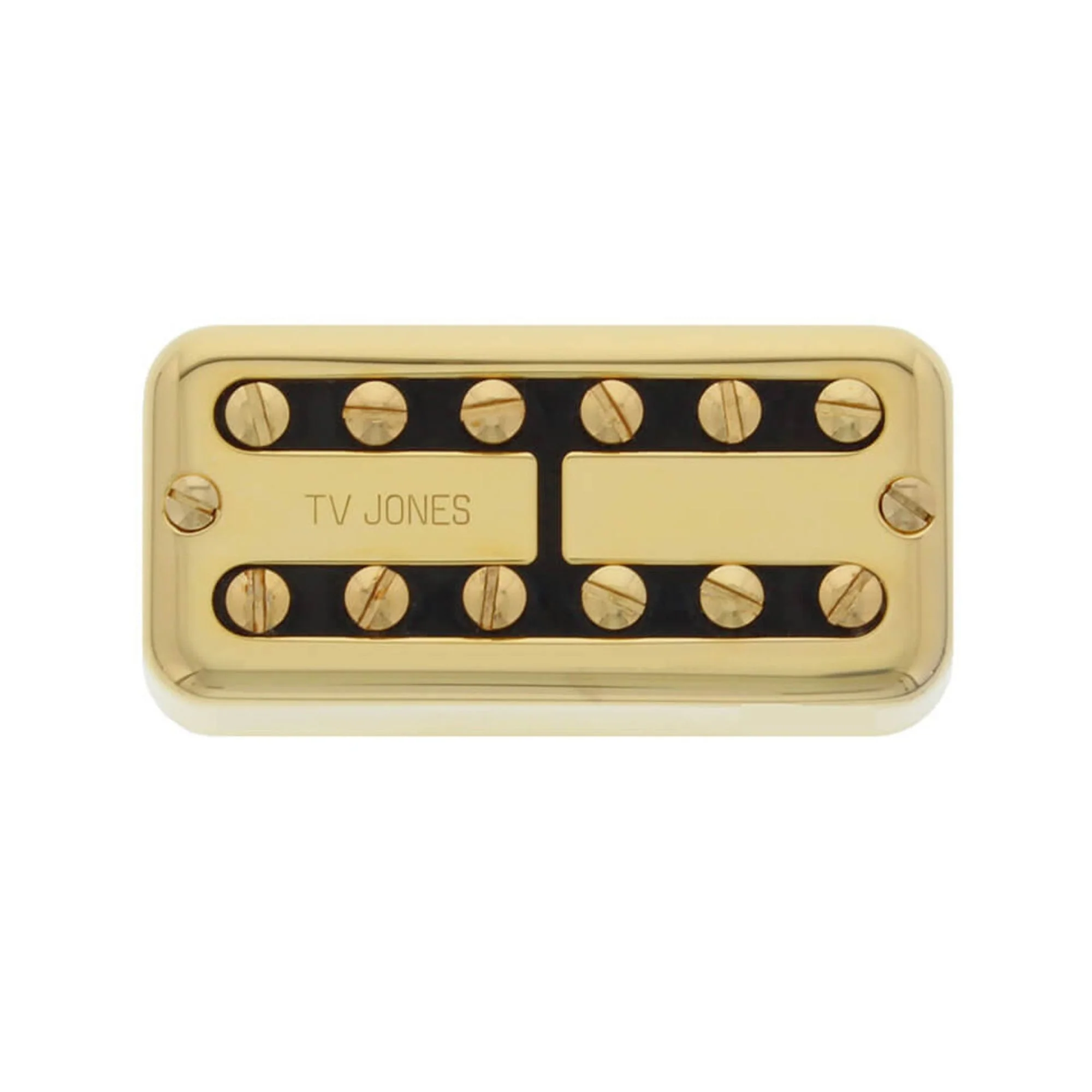

TV Jones TV Classic Plus Bridge Universal Mount Pickup
Utilising a thinner gauge of wire, the TV Classic Plus from TV Jones takes their classic much-loved design, and amps it up to 11!
Designed to saturate earlier, the Classic Plus has a rounder top-end and a touch more output. The classic Filtertron sound, but for those who want a pickup suited to more gain. This particular pickup pairs quite well with the TV Classic in the neck!
The universal mount is designed to be a direct drop-in replacement for any guitar with existing, standard-sized Filtertron pickups. Comes with two pieces of compression rubber, 2 wooden mounting screws, and 1 universal mount clip pack.Ā
Shipped with 4-conductor wire but can be wired for 2-conductor connection.Ā
Specifications:
Position - Bridge
Resistance - 7.8k
Inductance - 2.83H
Pole Spacing E to E - 2.03"
Pole to Pole Spacing - .406"
Recommended Pot Value - 500k
Replay Guitars is a TV Jones dealer in Australia.Ā
